[제품사양]

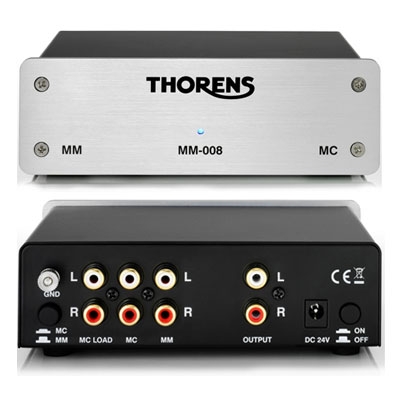

MM008 포노앰프

Mode - MM/MC (switchable)
Gain at 1 kHz - 40 dB (MM)/60 dB (MC)
Input impedance (MM) - 47 kΩ + 220 pF fixed
Input impedance (MC) - 47 kΩ + 1 nF (modifiable with external load plugs)
Frequency response (flat) - 20 Hz - 20 kHz ±0.3 dB
Frequency response (-3 dB) - 10 Hz - 50 kHz
RIAA curve accuracy - ±0.3 dB
THD+N - <0.013% (MM)/<0.055% (MC)
Signal-to-noise ratio - >86 dB (MM)/>72 dB (MC)
Crosstalk - ≧40 dB
Input sensitivity (MM) - 3.29 mVrms for -10 dBV output (316 mVrms)
Input sensitivity (MC) - 0.325 mVrms for -10 dBV output (316 mVrms)
Max. output voltage - 482 mVrms at 5 mVrms input (1 kHz)
Output impedance - 47 Ω
Input connections - 3 pairs of RCA sockets (left/right)
Output connections - 1 pair of RCA sockets (left/right)
Power supply - 24 V DC
Power consumption - 3.4 W/15 mA
Weight - 504 g (not including power supply)
Dimensions (W x H x D) - 150 x 50 x 117 mm
