DAC 디바이스는 24bit/192 kHz의 분해능력을 자랑하는 DSD에 대응하는 Wolfson [WM8742] 탑재
클록주파수의 초안정화를 실현하는 히팅회로를 내장
디지털 파형에 생기는 짓터를 소거하는 짓터클리너를 내장
강도를 높여 복잡한 공진을 제어하는 1.6mm두께의 플랫섀새를 채용하여 진동에 의한 칼라레이션을 억제
디지털 기기고유의 노이즈를 대폭 제어하는 [VLSC] 내장
노이즈폭을 억제하여 보다 퓨어한 아날로그 신호출력이 가능한 디지털출력 ON/OFF 변환기능탑재

• Repeat Modes (Super Audio CD and CD: Disc/Track/A-B Repeat, MP3 CD and WMA CD: Disc/Track/Folder/A-B Repeat)
• Random Modes (Super Audio CD and CD: Disc, MP3 CD and WMA CD: Disc/Folder)
• Headphone Jack with Volume Control
• 4-Mode Display Dimmer (Normal/Dim/Dimmer/Off)
• Hi-Rigidity, Anti-Resonant Flat Chassis (1.6 mm Thick)
• Aluminum Front Panel
• Heavy-Duty Inlet Power Cord
• RI-Compatible Remote Control
  　
• Plays Super Audio CD, Audio CD, CD-R, CD-RW, MP3 CD, and WMA CD*
• VLSC (Vector Linear Shaping Circuitry)
• High-Grade Wolfson?192 kHz/24-Bit D/A Converter (WM8742) with DSD Bit-Stream Support for Super Audio CD Applications
• Thermally Regulated Crystal Oscillator and Jitter-Cleaner Device to
• Stabilize Clock Frequency
• 2 Digital Outputs (Optical and Coaxial)
• Digital Out On/Off
• 19 mm-Pitch Audio Terminals for High-Grade Cable
• Digital Filter Control (CD: 5 Modes, Super Audio CD: 4 Modes and DSD Direct)
• Phase Control

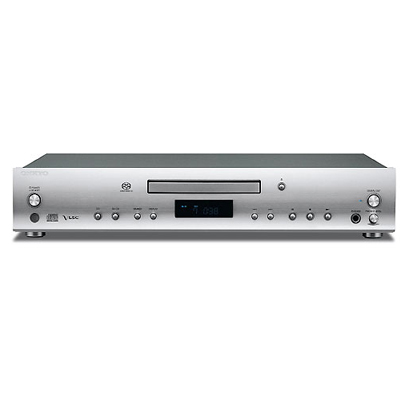

ONKYO(온쿄) C-S5VL SPEC.

Frequency Response : 74 Hz-50 kHz (SACD), 4 Hz-20 kHz (CD)

THD (1 kHz) : 0.0025 %

Dynamic Range : 100 dB

S/N Ratio : 114 dB (CD), 110 db (SACD)

Audio Output : -

Tone Control : -22.5dBm

Optical : 0.5 Vp-p/75 ohms

Digital (Coaxial) : 2.0 V (rms)/500 ohms

Analog : 15 W

Power Consumption : 0.3 W

Standby Power Consumption : 1 (Line)

Dimensions (W x H x D) : 435 x 80 x 318 mm

Weight : 4.5 kg
