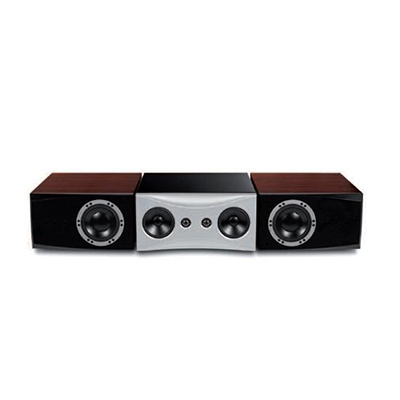

Dynaudio(다인오디오) Evidence Center - 센터스피커
|
상세정보
|
| Sensitivity (2.83 V/1 m): |
90 dB |
| Recommended Amp. Power: |
Listening distance:
3 m: 20 watts (4 ohm)
5 m: 50 watts (4 ohm)
7 m: 100 watts (4 ohm)
10 m: 200 watts (4 ohm) |
| IEC Long Term Power Handling: |
350 watts (4 ohm) |
| Impedance, Nominal: |
4 ohms |
| Impedance, (20-200 Hz): |
3.2 - 14.2 ohms |
| Impedance, (200-20 kHz): |
3.6 - 6.5 ohms |
| Impedance, Phase Shift (20-200 Hz): |
-42° - +21° |
| Impedance, Phase Shift (200-20 kHz): |
-4° - +15° |
| Impedance, HF (200 kHz): |
6.3 ohms |
| Frequency Response (+/- 3 dB): |
38 - 23000 Hz |
| Resonance Frequency: |
35 Hz |
| Internal Cabinet Volume: |
36 litres |
| Bass Principle: |
Reflex |
| Weight: |
121 lbs. (55 kg.) |
| Dimensions (W x H x L): |
48.00 x 8.26 x 18.27 inches
1220 x 210 x 464 mm |
| Crossover: |
3 way |
| Crossover Frequencies: |
400, 1900 Hz |
| Crossover Slope: |
6 dB/oct |
| Connection: |
CE-comp. WBT gold binding posts |
| Recommended Placing: |
Stand or cabinet support, under video screen |
| Remarks: |
Tweeters:
28 mm soft dome
Magnetic fluid
40 mm aluminum-alloy front with high heat-dissipation integrated in baffle
Pure aluminum wire voice coil
Aluminum-alloy rear chamber with high heat-dissipation
Over-dimensioned Neodymium magnet rings
Midranges:
15 cm one-piece moulded MSP-cone
38 mm pure aluminum wire voice coil
Propietary hybrid magnetic circuit
Woofers:
17 cm, one-piece moulded MSP-cone
75 mm pure aluminum wire voice coil
Neodymium dual-magnet rings
Magnetic fluid | | |
