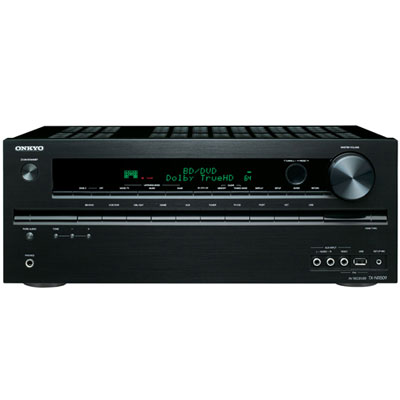

ONKYO(온쿄) TX-NR509 - AV리시버
|
상세정보
ADVANCED FEATURES
HDMI? Support for 3D, Audio Return
Channel, Deep Color™, x.v.Color™, LipSync, Dolby? TrueHD, DTS-HD
Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Direct Digital Connection of iPod/iPhone
via Front-Panel USB Port
Supports Onkyo Remote App for Control
of A/V Receiver via iPod/iPhone*
Dolby? TrueHD and DTS-HD Master Audio™
Decoding
Overlaid On-Screen Display (OSD) via
HDMI
Audyssey 2EQ? for Room Acoustic
Correction
Playback of Audio Files Through Local
Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)
Internet Radio Connectivity Through
vTuner
Certified with Windows? 7 and DLNA
Version 1.5
Firmware Updates via Ethernet and USB
Zone 2 Line-Out for Distributed Audio
Playback in Another Room
*Compatible iPod/iPhone models: iPod touch
3rd generation or later; iPhone 3GS or later. (All models require
iOS 4.2 or later.)
AMPLIFIER
FEATURES
H.C.P.S. (High Current Power Supply)
Massive High Power Transformer
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop)
Jitter-Cleaning Circuit Technology for S/PDIF Audio
PROCESSING
FEATURES
TI Burr-Brown 192 kHz/24-Bit DACs
for All ChannelsAdvanced
32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock,
Sports, Action, and RPG
Advanced Music Optimizer for
Compressed Digital Music Files
Mass Storage Class USB Memory
Playback Capability
Theater-Dimensional Virtual
Surround Function
CinemaFILTER™
Direct Mode
Pure Audio Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory

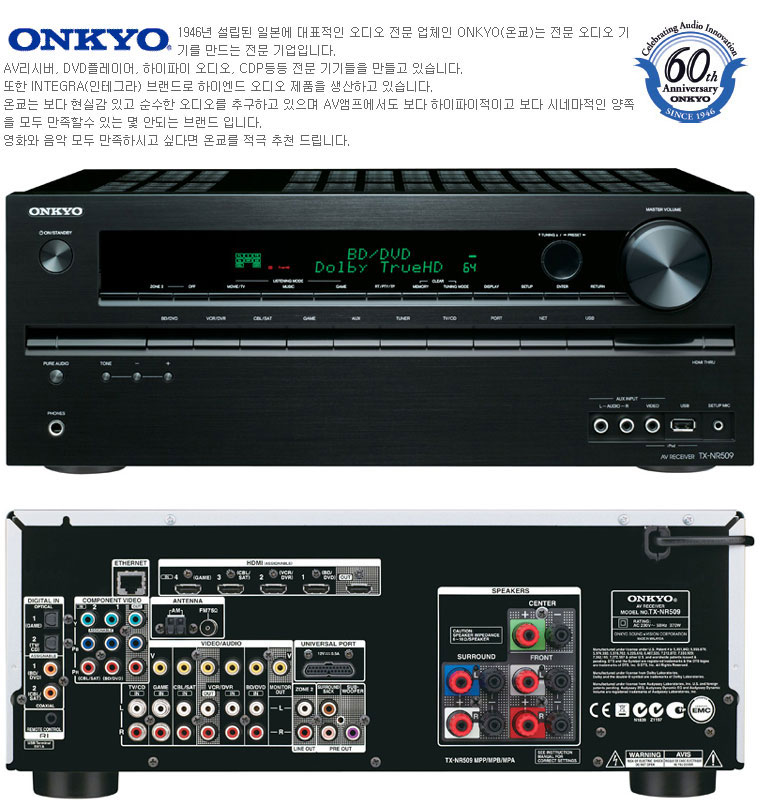

CONNECTION FEATURES
4 HDMI Inputs and 1 Output
Universal Port for UP-A1 Dock
for iPod/iPhone
HDTV-Capable (720p/1080i)
Component Video Switching (2 Inputs and 1 Output)
5 Composite Video Inputs (1
Front/4 Rear) and 2 Outputs
4 Digital Audio Inputs (2
Optical and 2 Coaxial)
6 Analog Audio Inputs (1
Front/5 Rear) and 1 Output
Subwoofer and Surround Back
Pre Outs
Color-Coded, Banana
Plug-Compatible Speaker Posts
Headphone Jack
OTHER FEATURES
Audyssey Dynamic EQ? for
Loudness Correction
Audyssey Dynamic Volume?
to Maintain Optimal Listening Level and Dynamic
Range
Crossover Adjustment
(40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to
400 ms at 48 kHz)
Tone Control
(Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer
(Normal/Dim/Dimmer)
40 FM/AM Random Presets
RIHD (Remote
Interactive over HDMI) for System Control
Full-Function RI
(Remote Interactive) Remote Control
GENERAL SPECIFICATIONS
Frequency Response: 20
Hz–50 kHz/+1 dB, -3 dB (DSP bypass)
WHD: 435 x 173.5 x 328
mm
Weight: 9.3 kg
|
|
