• Frequency Response +/- 3dB : 36 Hz - 30 KHz
• Sensitivity (1W@1M) : 90dB
• Nominal Impedance (Ohms) : 6
• Power Handling R.M.S (W) : 120
• Recommended Amplifier Requirements R.M.S (W) : 30-120
• Cabinet Design : Dual chamber bass reflex ? Ported front and rear
• Drive Unit : Complement 1 x 5.5" MMP? MK2 Bass 1 x 5.5" MMP? MK2 Bass mid-range, 1 x 1" (25mm) Gold Dome C-CAM? tweeter
• External Dimensions (cm) H x W x D : 85 x 16.5 x 24.7
• External Dimensions (inches) H x W x D : 33 7/16 x 6 1/2 x 9 3/4
• Individual Weight Kg (lb) : 11.5 (25.3)
• Weight Packaged Kg (lb) : 14 (30.8) (Packed Individually)

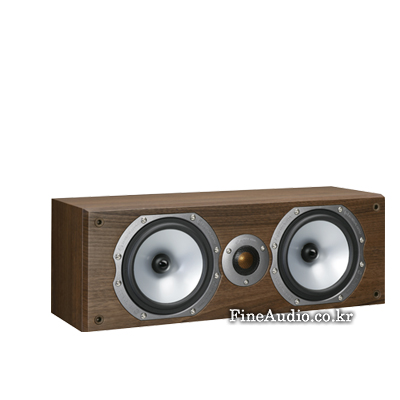

센터스피커 : BRLCR

• Frequency Response +/- 3dB : 60 Hz - 30 KHz
• Sensitivity (1W@1M) : 90dB
• Nominal Impedance (Ohms) : 6
• Power Handling R.M.S (W) : 120
• Recommended Amplifier Requirements R.M.S (W) : 20-120
• Cabinet Design : Sealed Cabinet
• Drive Unit Complement : 2 x 5.5" MMP? MK2 Bass mid-range, 1 x 1" (25mm) Gold Dome C-CAM? tweeter
• External Dimensions (cm) H x W x D : 16.5 x 46 x 16.5
• External Dimensions (inches) H x W x D : 6 ½ x 18 1/8 x 6 ½
• Individual Weight Kg (lb) : 6 (13.2)
• Weight Packaged Kg (lb) : 6.8 (15)

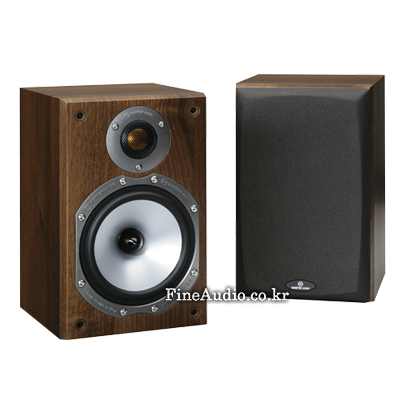

리어스피커 : BR1

• Frequency Response +/- 3dB : 55 Hz - 30 KHz
• Sensitivity (1W@1M) : 88dB
• Nominal Impedance (Ohms) : 6
• Power Handling R.M.S (W) : 70
• Recommended Amplifier Requirements R.M.S (W) : 15-70
• Cabinet Design : Rear ported Bass reflex
• Drive Unit : Complement 1 x 5.5" MMP? MK2 Bass mid-range, 1 x 1" (25mm) Gold Dome C-CAM? tweeter
• External Dimensions (cm) H x W x D : 26 x 16.5 x 18
• External Dimensions (inches) H x W x D : 10 1/4 x 6 1/2 x 7 1/16
• Individual Weight Kg (lb) : 3.8 (8.4)
• Weight Packaged Kg (lb) : 8.7 (19.1)

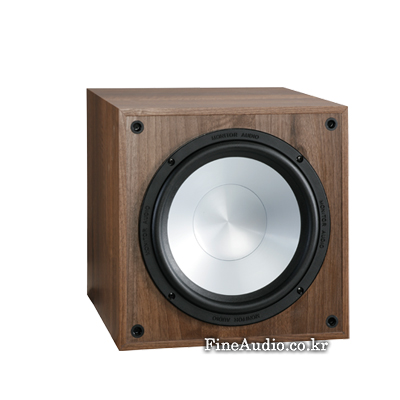

서브우퍼 : BRW10

• Low frequency limit : 27Hz
• Upper frequency limit : 40 ? 120 Hz Variable
• Low pass filter alignment 4th order : 24db/octave
• Amplifier Output : 150 Watts (R.M.S)
• Amplifier classification : Class- D Digital amplifier
• Driver compliment : 1 x 10” MMP? MK2 long throw driver
• Input Impedance : 20K Ohms
• Mains input voltage : 115 Vac / 230 Vac Factory Preset. Do not adjust
• Dimensions : All dimensions excluding grille
  - Millimetres : 320 H x 320 W x 340 D
  - Inches : 12 5/8 x 12 5/8 x 13 3/8
• Weight (unpacked) : 12.5 Kg (27.5lbs)
• Finishes : Black Oak, Cherry and Walnut vinyl’s. All fitted with a black grille.
