Compact. Versatile. Complete!

The Pioneer X-HM20V-K provides access to the latest devices and sources in sleek and compact design. Full audio and video support for iPod and iPhone devices is provided through an integrated top-mount dock. Or plug in iPad or USB memory devices through the front USB input for access to audio files. Also supported are DVD, CD, and standard AM/FM radio. Control it from anywhere in the room with the include multi-function remote. And watch on TV through most standard connections, including HDMI. All with power and sonic clarity that you might not expect from a micro system.
Timer/Sleep Functions
40 Station AM/FM Presets
DVD/SVCD/VCD/Audio CD/CD-R/CD-RW/MP3/WMA disc playback
30-pin iPod/iPhone Dock Input
Front USB Input
Line Input
Headphone Output
HDMI Output (for DVD)
S-Video Output (for DVD)
Composite Video Output
15W x2 (1kHz, 10%THD, 4ohms)
2-Way Speaker Systems, 5cm tweeter/10cm woofer

Main Features

Plays

- iPad, iPod, iPhone
- CD/DVD
- MP3, WMA files from USB and CD-R/RW
- Radio

Speakers 2 x 2-way bass-reflex speakers

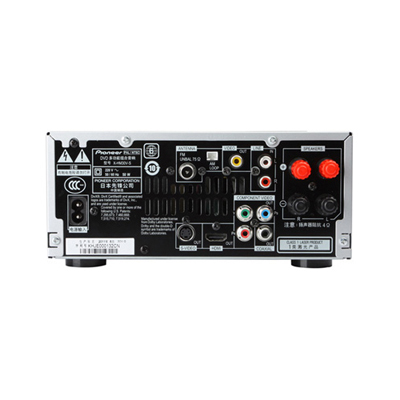

Terminals

- 1 x iPod/iPhone Docking Terminal
- 1 x DVD
- 1 x USB (Front)
- 1 x RCA Line In
- 1 x Headphones 3,5mm Jack Out
- 1 x HDMI Out
- 1 x S-Video Out
- 1 x Composite Video Out (for iPod)
- 1 x Tuner Antenna

Display FL (White color & Dot matrix type display)

Finish Aluminium Finish

Remote Control Unit Remote control included

Dimensions (W x H x D)

- Main Unit: 215 x 90 x 300 mm
- Speakers: 132 x 260 x 173 mm

Power Requirements AC 120V, 60Hz

Speakers

Speaker Type

- 2-way Bass-Reflex Speakers
- 100 mm Woofer
- 50 mm Soft Dome Tweeter
- Bass Reflex

Enclosure Magnetic Shield

Amplifier

Power RMS Front 15W + 15W (4Ω)

Radio

Tuner Yes

Presets 40

Audio

Bass/Treble Control Yes

P-BASS Yes

Apple Compatibility

Compatible Generations On the dock:
- iPhone, iPhone 3G, iPhone 3GS, iPhone 4
- iPod nano (1st - 6th gen.), iPod with video, iPod classic, iPod touch (1st - 4th gen.)
Via USB (cable not included):
- iPad, iPad 2 (no video)

Supported Functions

- Battery Charging
- Play audio and video
