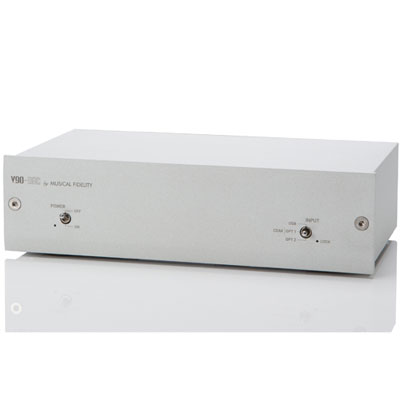

V90-DAC - Overview

The V90 DAC is the perfect way to upgrade the performance of a wide range of music sources. Housed in a solid yet discreet case, it unites sleek design and technical excellence to offer unrivalled musical enjoyment.
Offering Coax, Toslink and USB digital inputs, the V90-DAC is the ideal partner for a wide array of audio equipment. From PC and MAC computers, music streamers and set-top boxes to more conventional music sources such as CD and digital radio the V90-DAC delivers high-end sound quality at an affordable price.
The V90-DAC deploys a state-of-the-art 32Bit DAC housed in solid yet discreet attractive brushed aluminum case. It unites sleek design and technical excellence to offer unrivaled musical enjoyment.

Performance

Jitter: <12 picoseconds peak to peak
THD(+ noise): <0.004% 20Hz to 20 kHz
Frequency Response: +0, –0.1dB, 20Hz to 20 kHz
Crosstalk: -104dB, 20Hz to 20 kHz
Signal / Noise ratio: -117dB, 20Hz to 20 kHz

Inputs

1x RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM)
2x TOSLINK optical connector 32-96 kbps (16-24 bit stereo PCM)
1x USB type 'B' connector - Asynchronous data stream at up to 24-bit/96kHz (Determined by source file/computer settings)

Outputs

1x line level RCA (phono)
General
Dimensions - WxHxD (mm): 170 x 47 x 102
Weight (unpacked / packed): 600g / 1.1 kg
