TAG McLaren(테그맥라렌) [DVD32FLR] - DVD트랜스포트
|
상세정보
| [제품설명] |
| |
| TAG McLaren Audio |
| |
 |
|
최고 권위의 모터 스포츠인 Formula 1의
명문팀 McLaren Mercedes와 정밀공학의 선두주자 TAG HEUER사에서 합작 오디오 제작사인 TAG McLaren
사는 스포츠카의 핵심 기술인 물리학과 전자제어, 기계공학,항공 기술등의 보유 기술을 바탕으로 최고의 음향 영상 기술을
이루어 내었습니다. 제품의 역동적인 디자인은 설치장소에 귀족적인 우아함을 선사해 주며, 정적인 공간에 활기찬 생명력을
줍니다. TAGMcLaren제품들은 TAGtronic comunication Bus를 통해 상호 정보를 교환합니다. 간단하게는
On/Off 기능에서부터 DVDP와 Processor간에 발생하는 지터를 감쇄하며, 화면과 음향의 LipSync를
완벽하게 일치 시키는 놀라운 연동성을 가지고 있습니다. 빠르게 변하는 최신의 디지탈 포맷들은 인터넷을 통해 지속적으로
업그레이드 할 수 있습니다. TAGMcLaren 오디오의 우수한 밸런스의 음향과 풍요로운 영상미를
통해 즐거운 여가 생활을 즐겨 보시기 바랍니다. |
DVD32R의 성능을 이어가면서도 탑로딩 방식의 DVD32R구조가
설치환경에 제약이 될 때를 위한 제품입니다. TAGMcLaren만의 풍부한 영상미와 명료하면서도 우수한 해상력의 사운드를
충분히 즐길 수 있습니다.
 주요
특징 -NTSC와 PAL방식에
모두 대응
-레퍼런스급의 CD재생
-Pantera-DVD칩 사용
-TAGMcLaren의 AV프로세서와 T2L회로를 통해 지터를 최소화
-제품내의 모든 전원 공급부에 독립 전원부 채용
-상급기인 DVD32R의 성능을 계승
-탑로딩 방식의 DVD32R의 설치상 제약에 대비 프론트 로딩 방식 채택
DVD32R 은 톱 로딩 방식으로 제작되었으며 육중한 섀시와 차가운 금속적인 질감을 도트 매트릭스 방식의 대형 디스플레이에 조합함으로서
디스플레이의 윤곽이나 버튼의 배열에서 느껴지는 세련미는 기존의 오디오 제품과는 격을 달리할 정도입니다. 아름다운 곡선미를 자랑하는
탑 패널은 왼쪽으로 미끄러지듯이 이동하면서 열리는데 내부를 은은히 조명해 주는 푸른색의 LED 는 환상적인 분위기를 연출해 줍니다.
DVD32R 의 영상 처리부에는 미디어 매틱스의 팬테라칩을 사용했는데, 이는 최근 업계에서 문제 되고 있는 크로마 버그가 발생하지
않는 우수한 칩셋으로 알려져 있습니다. 또 다른 중요한 특징은 차후의 업그레이드에 대한 철저한 대비를 들 수 있습니다. 최고급 부품
구성으로, 강력한 업그레이드 제공합니다. 또한 DVD32R은 THX? Ultra 가 요구 하는 모든 조건을 완벽하게 부합하고 있다.
최상의
소리
DVD32FLR 아날로그
회로부는 안전성 높은 비세의 저항을 비롯해 최고품의 부품을 사용하였으며, 진동을 억제하기
위한 라미네이트 구조의 새시나 소보탄 재질의 받침을 사용. 또한 지터를 최소한하는 T2L 링크까지 마련되어 있는 제품입니다.
최상의
화면
TAG McLaren의 MPEG 디코더분야는 Mediamatics의
자회사인 내셔널반도체분야와의 작품으로 오랜 평가 끝에 single chip이 있는 DVD player의 모든 back-end기능을
통합한 최초의 IC인 Pantera-DVD™ 이 선택되었습니다.
이는 최근 업계에서 문제시되고 있는 크로마 버그가 방생하지 않는 칩입니다. 이와 같은 조화로서 host processing,
32-bit RISC processor, 10-bit video DACs, NTSC/PAL encoders 등을 지원합니다.
비디오 회로도는 broadcast quality components를 사용하며, 최상의 화질을 위해 독립적인 버퍼를 가지는
비디오 아웃풋과 버티컬, anti-flicker filtering을 가집니다. in-built test-patterns과 전기기술
회로도테스트 는 최상의 화면을 재생하여 줍니다.
DVD-32FLR
The DVD32R has earned itself a reputation as
one of the best performing DVD players money can buy, and the first DVD
player to truly offer no-compromise, top class CD replay. However, the
top loading construction of DVD32R does not suit all installations.
Ever since launching DVD32R in September 2000
to widespread acclaim, the team at TAG McLaren have been pursuing an elusive
goal: to get close to the performance of the DVD32R, but from a front
loading design.

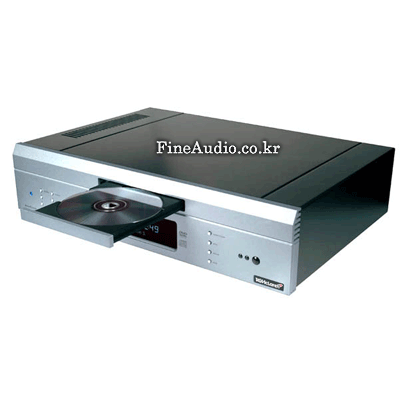

DVD Player
DVD32FLR
 |
|
From the outset it was clear that a similar performance
could only be reached if we could re-use the DVD32R’s proven electronics,
but linked to a front loading DVD mechanism.
However, the DVD32R is an extremely compact design,
bearing in mind that it includes a heavy, lead-weighted, suspended
DVD transport mechanism, hence the height had to increase to add
the front loading DVD mechanism above the DVD32R’s main printed
circuit board.
|
Like
the DVD32R, the DVD32FLR continues TAG McLaren’s tradition of protecting
their customers’ investment with upgradability other manufacturers
can only dream of. The DVD32FLR can already be upgraded to accept
the stunning Progressive Scan Module PSM192, providing top class,
motion-adaptive analog and digital progressive scan output from
PAL and NTSC DVDs - but also generating progressive scan output
from all your S-Video and Composite video sources. Read the PSM192
article for details of this amazing upgrade.
The vault-like construction of the player
starts with its ultra-rigid front panel. The panel is machined from
a 17 mm thick custom aluminium extrusion, deeply finned for maximum
rigidity. The player’s rigid, folded chassis bolts directly to the
front panel, creating a very stiff assembly. The loader mechanism
itself is carried on a separate sub-chassis which is in turn bolted
to both the chassis and the front panel, further increasing the
rigidity of the player. Finally, the lid fits snugly into the front
panel extrusion and is bolted to the chassis at the rear.
The entire construction weighs in at a
substantial 8.85 kg and rests on TAG McLaren’s custom made Sorbothane
mounting feet for vibration isolation.
업그래이드
경로
DVD32R은 업그래이드가 가능하며, Progressive Scan,
Digital Video 등의 하드웨어 업그래이드를 받을 수 있도록 짜여져 있으며, 기능적인 향상은 TAG McLaren's의
웹사이트를 통하여 업그래이드 가능합니다. 또한 집에서 PC를 사용하여 쉽고 간편하게 소프트웨어를 업그래이드 받을 수도
있습니다. 또한 DVD-Audio나 SACD 등의 차세대 음악포맷을 지원을 위한 IEEE1394 인터페이스 장착을
위한 여유공간 마련되어 있다.
DVD32R 옵션
The
Progressive Scan Module PSM192 + DVI
테그맥라렌의
하인엔드 프로그레시브 모듈 |
|
 |
|
The
PSM192 de-interlaces all your video
sources! ...why only enhance DVDs?
Progressive Scan
or De-interlacing, i.e. the generation of a picture which
is progressively scanned every 1/50s (NTSC: 1/60) from top to bottom,
has recently become popular in the context of the latest DVD player
technology.
Progressive
Scan provides significant picture enhancement, but should
not be limited to DVD. Why not use a general
purpose Progressive Scan Module, like the PSM192, instead,
to de-interlace all your video sources? TV, VCR, Laserdisc, video
camera, satellite receiver etc. will all improve, just like your
DVD!
Interlacing,
i.e. splitting a picture into two fields of half the line count,
which in PAL transmissions are sent 1/50 (NTSC: 1/60) seconds
apart, leads to reduced vertical picture resolution and flicker.
Unfortunately, just 'gluing’ those fields together afterwards
isn't that simple.
|
|
Progressive Scan results
in better vertical picture resolution, reduced motion artefacts and
reduced flicker, making us wonder how we could ever have lived without
it.
Two of the very latest
Plasma screens from different manufacturers were therefore pulled
into our laboratory for analysis. The tests were: firstly feed the
screens with ‘standard’ interlaced video, therefore using the Plasmas'
internal Progressive Scan modules and scalers, secondly feed the screens
from the output of the PSM192, installed in a DVD32R.
Before undertaking
this experiment we were sceptical about the outcome, thinking that
Plasma technology should have
progressed nicely, leaving very little else to offer. However, comparing
the picture quality of these two 42" Plasmas left me surprised:
the pictures couldn't be more different, whether interlaced or de-interlaced.
Feeding the very same signal resulted in significantly different
pictures, proving that video technology surely hasn’t reached ‘Picture
Perfect’ yet.
Acknowledging
the fact that the picture quality differences between Plasmas
of different manufacturers are still huge, we focussed on the
performance of the Plasmas’ internal de-interlacer compared to
the PSM192 installed in the DVD32R. It wasn’t difficult to see
the differences, Silicon Image’s latest technology in the PSM192
showed clear gains, resulting in a picture which was crisper,
showing sharper details and reduced motion artefacts.
Should this
really surprise us? Display technologies are expensive, savings
on ultimate picture quality versus screen size are all important
and if you haven’t seen what is possible, you might not even
know what you are missing. In a very competitive market, such
as display technology, adding a six layer, highly integrated
and powerful Progressive Scan Module, such as the PSM192, is
commercially just not viable - not for the display manufacturer!
If you have
a DVD32R or DVD32FLR, of whatever specification, then you
can have it upgraded with the Progressive Scan Module PSM192,
improving picture quality of DVDs and all your Composite
and S-Video sources.

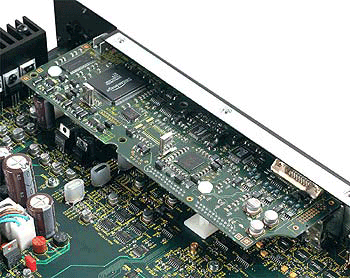

The
upgrade requires the DVD32R / DVD32FLR to come back to
us, as we will update the chassis and rewire the DVD32R's
multi-layer printed circuit board before installing the
six-layer PSM192 board. All this requires special tools
and skills!
The upgrade will take about two working weeks, not counting
shipping times, and is covered by your standard DVD32R
/ DVD32FLR’s product warranty.
Performance and Formats:
* Compatible with DVD-Video and CD Music (8 and
12cm)
* PCM, Dolby Digital, MPEG, DTS
* digital output at 44.1, 48 and 96 kHz with 16, 20 or
24 bits
* Native support of NTSC-M, PAL-B/D/G/H/I and PAL M
* Composite, S-Video and Component outputs for best video
quality
* Very low jitter clock re-times the SPDIF audio data
* TAGtronic Synchronisation Link T2L to lock the master
clock to the AV32R
Construction
* Rigid custom extruded front panel with internal sub-chassis
supporting loader mechanism
* Mixed technology construction
* Multi-layer printed circuit board for best signal to
noise ratio
* High-quality controls, surfaces and fascia for life-long
perfection
* Extensive vibration damping of chassis panels
* Sorbothane mounting feet for best vibration isolation
Key Building Blocks
* Dual Laser enabling better CD-R/RW playback and more
reliability
* Mediamatics Pantera-DVD™ 32bit RISC processor for best
audio and video quality
* Siemens 16-bit microcontroller for most comprehensive
user interface
* Stable multi-frequency internal clocks
* Massive round-core transformer
* Twelve independent stable power supplies
* Premium-grade analog components
* Broadcast-quality video components

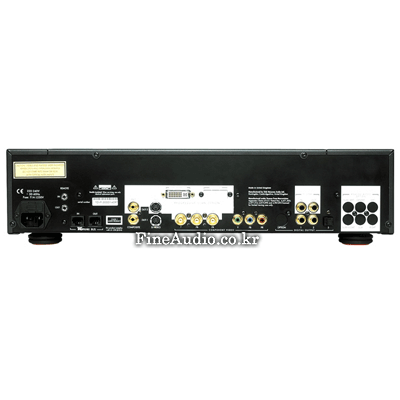

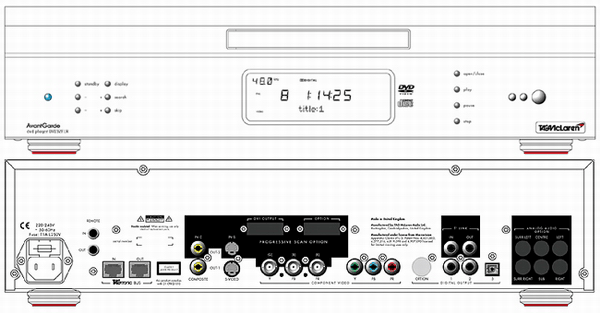

In and Outputs
* Two composite outputs1 @1.0 Vp-p (75 Ohm, neg. sync.)
* Two1 S-Video outputs
Y-signal: 1.0 Vp-p (75Ohm, neg. sync.)
C-signal: NTSC: 286 mVp-p (75 Ohm) PAL: 300 mVp-p (75
Ohm)
Two2 Component video outputs, one with RCA, the other
with BNC connectors
Y: 1.0 Vp-p (75 Ohm load, 300mV sync.)
Pb: 700 mVp-p (75 Ohm load)
Pr: 700 mVp-p (75 Ohm load)
Three digital audio outputs (two coaxial SPDIF and one
optical)
IEC958 output level: 0.5V p-p
TOSLINK output level: -18dBm (wavelength 660nm)
Enhanced TAGtronic Communication Bus
TAGtronic Synchronisation Link T2L
Two inputs for cable based IR distribution systems
Ease of Use
* Unique Setup Wizard lets you forget printed user manuals
* Fully remote controlled
* Delivered with a backlit, learning remote
* User configurable auto-standby function
* TAGtronic Bus for inter-product communication and firmware
upgrades
Test-Pattern Generator
* Software and hardware generated test-patterns to assist
in optimising picture quality
Enhanced TAGtronic Bus Support
* Many features available, if TAGtronic Bus equipped products
are connected
* Sharing of remote commands over the TAGtronic * Bus
allows hidden installation of AV processor and amplification
* Display of AV32R status (received via TAGtronic Bus)
even on Component video
Upgrade Paths
* Firmware upgrades via the TAG McLaren Audio website
* Hardware upgrade scheduled for DVD-Audio
* Progressive Scan Module PSM192 available for
analog and digital (DVI 1.0) progressive scan output from
DVD and from external S-video and composite video sources,
all NTSC, PAL and SECAM formats supported.
Physical Dimensions
* 445 x 111 x 311 mm (WHD including feet and connectors)
* Weight approx. 9 kg
* We reserve the right to alter design and specification
without notice.
* Specification may vary for different countries.
|
|
