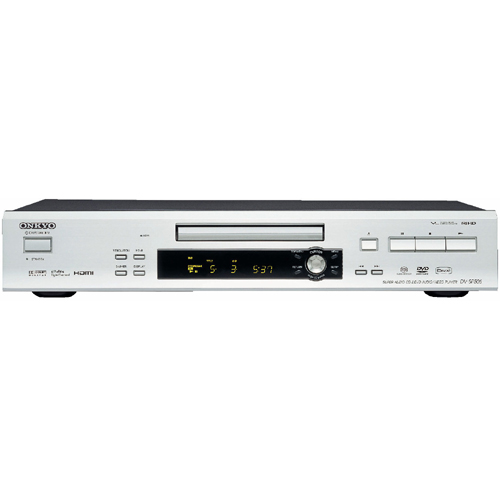

ONKYO(온쿄) DV-SP506
|
상세정보
|
- Processing decoding : DVD Audio / SACD
- HDTV-ready progressive : Video upscaling to 1080p via HDMI
- Playable formats : DVD / DVD-R/RW / CD / CD-R/RW / MP3 / WMA / JPG / Video CD
- Best video out : 1 HDMI out
- Best audio out : 1 digital coaxial audio out / 1 digital optical audio out
- Other outputs : 1 component video / 1 composite video / 1 S-Video / 7.1-channel multi-channel audio output
- Navigation aids : Disc Navigator system
- Video DAC : 108MHz/14-bit
- Audio DAC : 19kHz/24-bit
- Remote control : Preprogrammed remote included
Additional Specifications
- dts and Dolby Digital audio output
- 96kHz - 48kHz selectable digital output
- Direct Signal Path / Vector Linear Shaping Circuitry (VLSC)
- Analog audio output
- Passes PLUGE signals
- 8-language soundtrack capability
- 4-mode dimmable display
- Other connections : 1 RS-232c input / 2 RI inputs
- Dynamic range control / Video black-level control
- Programmed memory playback
Manufacturer Specifications
- Frequency sampling (DVD Audio) : 4Hz - 88kHz (192kHz) / Super Audio CD: 4Hz - 50kHz
- Frequency response (DVD linear sound) : 4Hz - 22kHz (48kHz sampling) / 4Hz - 44kHz (96kHz sampling)
- Frequency response (Audio CD) : 4Hz - 20kHz (44.1kHz sampling)
- S/N ratio (digital audio) : 105dB / Harmonic distortion (digital audio): 0.03%
- Video output : 1.0 V p-p, 75 ohm / negative snc
- S-video output : Y: 1 Vp-p, 75 ohm, negative sync / 4-pin mini DIN C: 0.286 Vp-p, 75 ohm
- Component signal output : Y: 1 Vp-p, 75 ohm / PB/PR: 0.7 Vp-p, 75 ohm
- Optical audio output : -22.5dBm
- Coaxial audio output : 0.5 Vp-p, 75 ohm
- Analog audio output : 2 V (rms)/550 |
